Rublon Authentication Proxy (v2.5.1)

Last updated on December 12, 2024

Overview

Rublon Authentication Proxy is an on-premises RADIUS proxy server that allows you to enable Multi-Factor-Authentication (MFA/2FA) on any service that supports the RADIUS authentication protocol.

Supported systems:

• Linux (tested on CentOS, Ubuntu)
• Windows Server 2008 R2
• Windows Server 2012
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022

Available authentication methods:

• Mobile Push
• Email Link
• Mobile Passcode (TOTP)

How does Rublon Authentication Proxy work?

After you deploy Rublon Authentication Proxy as an on-premises service and set it up as a RADIUS authentication source on one or more services (e.g. OpenVPN), Rublon Authentication Proxy starts listening for any incoming authentication requests.

When you initiate login to one of the integrated services, Rublon Authentication Proxy receives an Access-Request. Then, Rublon asks for your IdP credentials. If user credentials you provided are correct, Rublon initiates the second step of authentication.

Once you complete the second step of authentication, Rublon Authentication Proxy returns an Access-Accept response, which concludes 2FA. The following diagram shows a simplified, successful authentication process:

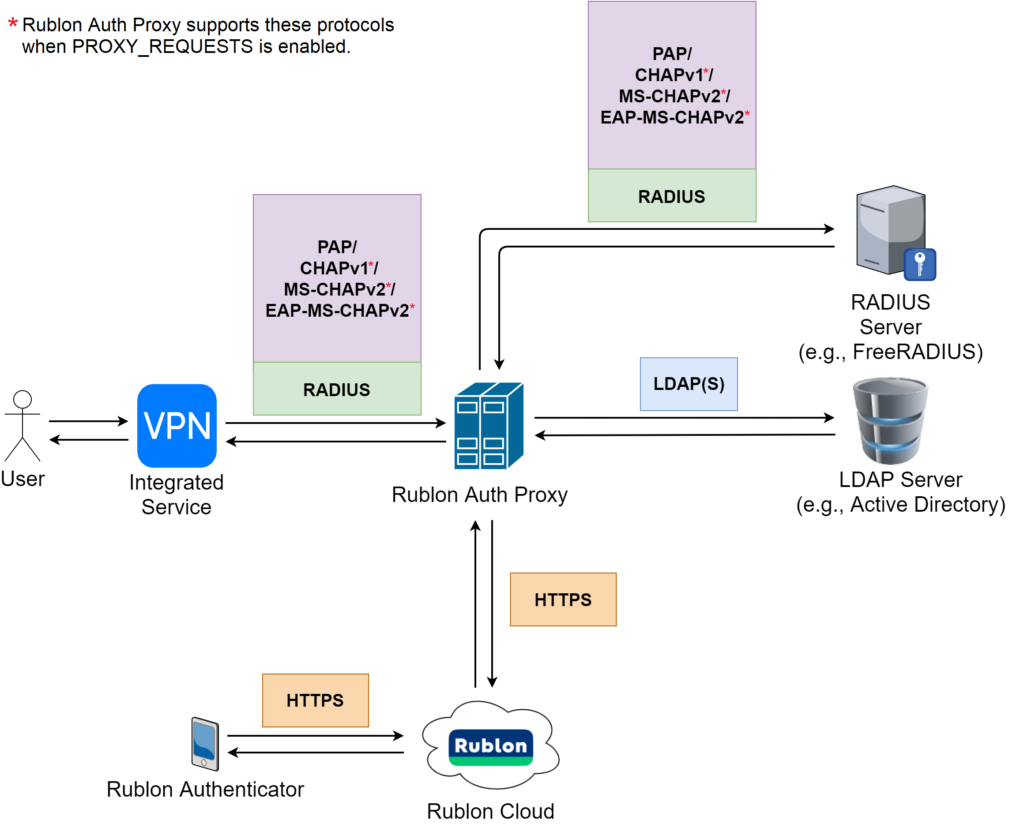

The following diagram portrays a Rublon Authentication Proxy login flow along with the names of protocols used in each part of the transaction.

Before you start

Rublon Authentication Proxy is not an Identity Provider (IdP). Rublon Authentication Proxy is a RADIUS proxy server that pulls users from an external IdP. As a result, you have to use (or set up) an external IdP that manages your user identities.

List of tested and verified IdPs:

• Active Directory
• OpenLDAP
• FreeIPA
• FreeRADIUS (standalone, full version)
• Cisco ACS
• Microsoft NPS (Network Policy Server)

Rublon requires a user’s email address to perform 2FA. Consequently, every user who wants to log in using Rublon Authentication Proxy must have their email address assigned in the Rublon Admin Console. If the user has an email address added to their IdP account, Rublon will automatically add this email address to the Rublon Admin Console during user enrollment. Otherwise, you must manually add the user’s email address in the Admin Console.

Rublon Authentication Proxy does not support RADIUS Accounting. As a result, Rublon Authentication Proxy does not listen on port 1813. Rublon may add support for RADIUS Accounting in the future. In the meantime, turn off RADIUS Accounting to avoid potential errors.

Install Rublon Authentication Proxy

You can install Rublon Authentication Proxy on Linux or Windows.

Linux

• If your Linux distribution uses glibc (GNU libc) version 2.29 or higher, download the rublonauthproxy package.
• If your Linux distribution uses glibc (GNU libc) version 2.28 or lower, download the rublonauthproxy_py36 package.

1. Deploy rublonauthproxy-latest in the desired location on the server and unpack it (make sure to change the file name when copy-pasting the command below).
   tar -xzf rublonauthproxy-X.Y.Z.tgz
2. Go to the unpacked folder:
   cd rublonauthproxy
3. Create a service file:
   make service
4. Move the created service file to /lib/systemd/system:
   mv rublon.service /lib/systemd/system
5. Reload daemon services:
   systemctl daemon-reload
6. Create a rublonauthproxy/config/config.json file based on config.example.json (you can use our minimal config file templates).

Windows

1. Download the Rublon Authentication Proxy installer.
2. Launch the installer with administrator rights and follow the instructions to complete the installation.
3. Modify the Rublon Auth Proxy\config\config.json file based on config.example.json.

Configure Rublon Authentication Proxy

The config.json configuration file must be located inside the rublonauthproxy/config directory. Use a proper JSON convention. All property names must be uppercase.

Example configuration templates are the easiest way to start a configuration. Find them at the bottom of this document. Templates are also located inside the rublonauthproxy/config directory after you unpack Rublon Authentication Proxy.

If you would like to use RADIUS as an authentication source, you have to configure your RADIUS server first.

To obtain RUBLON_TOKEN and RUBLON_SECRET, sign in to the Rublon Admin Console and add a new application of type Rublon Authentication Proxy.

Note that after every change in the config.json file, you must restart the Rublon Authentication Proxy service for the changes to take effect.

Sections

SERVERS

This subsection describes the possible options of a single element in the “SERVERS” array inside the “PROXY” section. See the configuration example for more details.

LDAP

You can configure multiple LDAP authentication sources by adding more than one LDAP section suffixed with “_” (underscore), e.g. “LDAP_2”. See the configuration example to find out how to do it.

RADIUS

You can configure multiple RADIUS authentication sources by adding more than one RADIUS section suffixed with “_” (underscore), e.g. “RADIUS_2”. See the configuration example to find out how to do it.

Append Mode

Append Mode is a feature available in Rublon Authentication Proxy when the “standard” mode is set in the configuration file. Append Mode allows you to choose your authentication method by appending specific values to your password when logging in to an integrated service. The specific value is preceded by the append mode separator.

Append Mode works only in “standard” mode. Enable Append Mode by adding the following options to one of your server’s configurations under the “SERVERS” section:

"USE_APPEND_MODE": true
"APPEND_MODE_SEPARATOR": ","

By default, the separator is set to “,” (comma).

How does it work?

After you enable Append Mode, when logging in to an integrated service, type in your password. Then, append the APPEND_MODE_SEPARATOR. Then, you can append one of the following values:

• “push”
• “email”
• “123456” – the TOTP code; must be exactly 6 characters long with no spaces in-between

If Append Mode is enabled but the user only provides their password without appending anything, the authentication method set in AUTH_METHOD is used.

Similarly, if the appended value is not recognized, the entire provided string is treated as a password and the authentication method set in AUTH_METHOD is used.

Note that AppendMode is case-sensitive. Values like “Push”, “EMAIL”, “pUsH” do not work.

Examples

Let’s assume that your password is: “pancakes123”, and the separator is not set in the configuration file, so its value is the default “,” (comma).

If you would like to choose push as the authentication method, type:

    pancakes123,push

If you would like to choose email as the authentication method, type:

    pancakes123,email

If you would like to choose totp as the authentication method, type:

    pancakes123,123456

Where 123456 is the TOTP code generated by Rublon Authenticator.

Non-PAP protocol for RADIUS communication

By default, Rublon Authentication Proxy uses only the PAP protocol to authenticate users. This means that all systems that try to use other protocols (like CHAPv1, EAP-MS-CHAPv2) to communicate with Rublon Authentication Proxy will not work. However, it is possible to configure Rublon Authentication Proxy to proxy all non-PAP requests to the RADIUS server.

To do so, add:
    "PROXY_REQUESTS": true

To your configuration file, under the “RADIUS” section. Rublon 2FA will be performed upon receiving the Access-Accept response packet from the RADIUS server.

If the RADIUS server was configured to accept these protocols, protocols such as CHAPv1 or MS-CHAPv2 (even EAP-MS-CHAPv2) should work from now on.

Refer to the following flowchart, which portrays how proxying works.

Configuration example

{
 "PROXY": {
   "RADIUS_SECRET": "secret_to_communicate_with_the_proxy",
   "RUBLON_API": "https://core.rublon.net",
   "SERVERS": [
     {
       "IP": "172.16.1.100",
       "PORT": 1812,
       "MODE": "standard",
       "AUTH_SOURCE": "LDAP,LDAP_2",
       "RUBLON_TOKEN": "SYSTEM_TOKEN",
       "RUBLON_SECRET": "SECRET_KEY",
       "AUTH_METHOD": "email",
       "USE_APPEND_MODE": true,
       "APPEND_MODE_SEPARATOR": ","
     },
     {
       "IP": "172.16.1.100",
       "PORT": 18120,
       "MODE": "standard",
       "AUTH_SOURCE": "RADIUS_2",
       "RUBLON_TOKEN": "SYSTEM_TOKEN_2",
       "RUBLON_SECRET": "SECRET_KEY_2",
       "AUTH_METHOD": "push,email"
     }
   ]
 },
 "LDAP": {
   "HOST": "172.16.3.100",
   "SEARCH_DN": "dc=test,dc=local",
   "ACCESS_USER_DN": "cn=Administrator,cn=Users,dc=test,dc=local",
   "ACCESS_USER_PASSWORD": "v3ryH@rdpa$$w0rd"
 },
 "LDAP_2": {
   "HOST": "172.16.3.101",
   "SEARCH_DN": "dc=test2,dc=local",
   "ACCESS_USER_DN": "cn=Administrator,cn=Users,dc=test2,dc=local",
   "ACCESS_USER_PASSWORD": "v3ryH@rdpa$$w0rd"
 },
 "RADIUS": {
   "SERVER_IP": "172.16.2.100",
   "PORT": 1812,
   "SECRET": "secret_to_communicate_with_radius_server"
 },
 "RADIUS_2": {
   "SERVER_IP": "172.16.2.101",
   "PORT": 1812,
   "SECRET": "secret_to_communicate_with_radius_server_2"
 }
}

Start Rublon Authentication Proxy

Linux

To run Rublon Authentication Proxy, start the service using one of the following commands:

systemctl start rublon.service

or

service rublon start

Windows

Run Rublon Authentication Proxy as a console application to ensure everything is set up properly:

1. Open cmd as administrator and go to the proxy’s installation directory:
   cd C:\Program Files\Rublon Auth Proxy

2. Run the proxy:
   .\bin\rublonauthproxy.exe

If Rublon Authentication Proxy is configured properly, the console displays the Started listening log. At this point, you can test user authentication. To test user authentication, use NTRadPing or start configuring Rublon with one of the services that support the Rublon Authentication Proxy.

If everything works, start the proxy as a service:

net start RublonAuthProxy

Alternatively, you can start the proxy as a service in the following way:

1. Find Rublon Authentication Proxy Service on the Windows services list (services.msc).
2. Right-click Rublon Authentication Proxy Service and select Start.

Update Rublon Authentication Proxy

Linux

1. Stop Rublon service:
   systemctl stop rublon.service
   or
   service rublon stop
2. Download the latest rublonauthproxy package and unpack it.
3. Replace the lib directory inside the previously deployed rublonauthproxy folder.
4. Make sure the rublonauthproxy/lib/rublonauthproxy file has proper permissions:
   chmod 775 rublonauthproxy/lib/rublonauthproxy
5. Run the service:
   systemctl start rublon.service
   or
   service rublon start

Windows

Run the installer over your current installation to update Rublon Authentication Proxy. Config and log files will be preserved.

Uninstall Rublon Authentication Proxy

Linux

1. Stop Rublon service:
   systemctl stop rublon.service
   or
   service rublon stop
2. Remove rublon.service:
   rm -f /lib/systemd/system/rublon.service
3. Remove the rublonauthproxy directory:
   rm -rf rublonauthproxy

Windows

Run the unins000.exe file located in the installation directory. Note that configuration and log files will be preserved.

Troubleshooting

If you are facing an issue with the Rublon Authentication Proxy, try restarting the Rublon Authentication Proxy.

If restarting the Rublon Authentication Proxy didn’t fix your issue, go to your configuration file and set the DEBUG option to true. Then, check the contents of your rublonauthproxy.log file. Information contained in this file should in most cases be enough to troubleshoot issues related to Rublon Authentication Proxy.

If you installed the Rublon Authentication Proxy on Windows, then rublonauthproxy.log is located in the following location:

C:\Program Files\Rublon Auth Proxy\logs\rublonauthproxy.log

If you installed the Rublon Authentication Proxy on Linux, then rublonauthproxy.log is located in the following location:

rublonauthproxy/logs/rublonauthproxy.log

Note that most issues occur due to incorrect configuration.

If you encounter any issues with your Rublon integration, please contact Rublon Support.
